Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

Product Description

• Totally European design, streamlined looking,Monoblock,The frame of this machine tool is welded construction with steel plate,and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.

• As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

• Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder

• Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing

• The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding

• It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.

• Motorized adjusting and manual adjusting for the back gauge

• Cutting times of this machining tool are controlled by the time relay.

• A set of standard blades.

• Standard front support sheet frame.

• Protection fence and the electric interlocker to ensure the safety of the operator.

• The machine by the European Union CE certification and ISO quality system certification

ControlEstun E21S
HydraulicGermany Bosch-Rexroth Hydraulic
ElecricSchneider
ProtectionHydraulic and Electrical overload protection
StandardSide guard is standard meeting CE regulations
BladesMulti Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
Ball screwTAIWAN HIWIN

6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

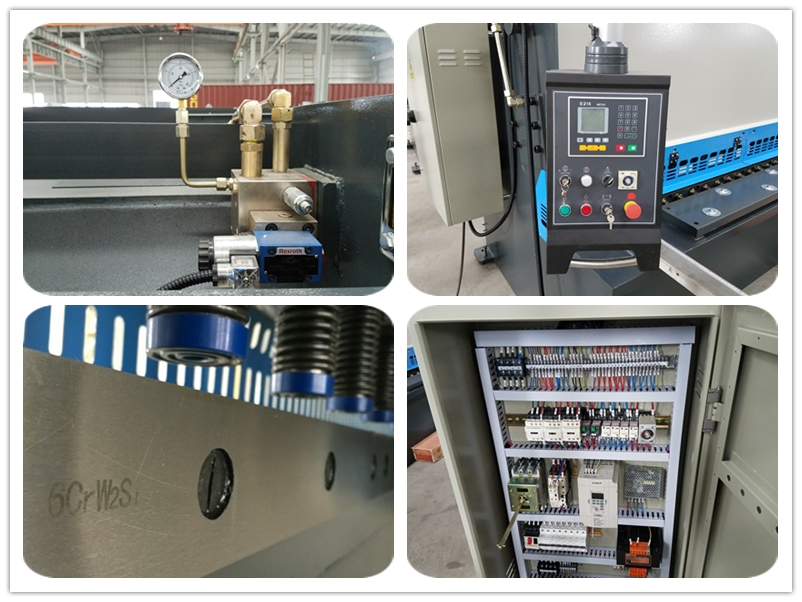

 Detailed Images

6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

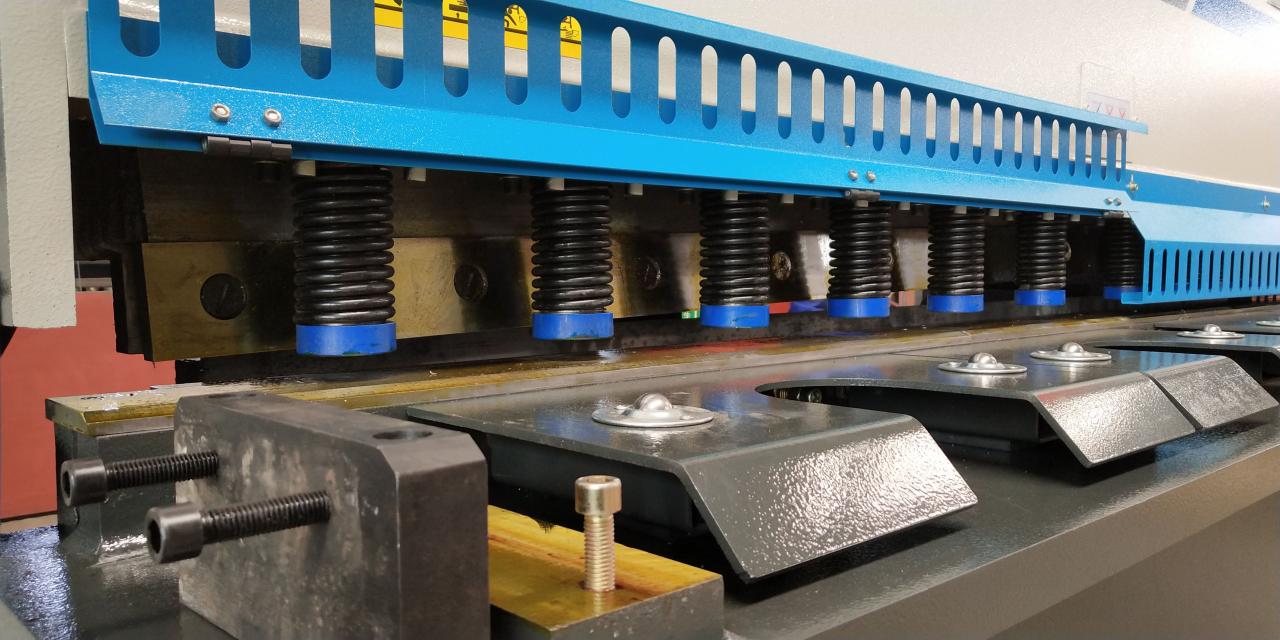

Clamp and blade

High quality stop in, to ensure the sheet metal to be press well when do shering. Sharp blade to make the machine shearing fast and with high precision

6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

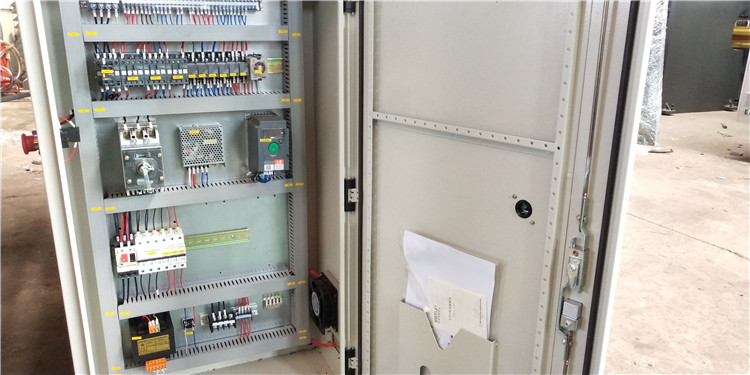

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the world.

6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

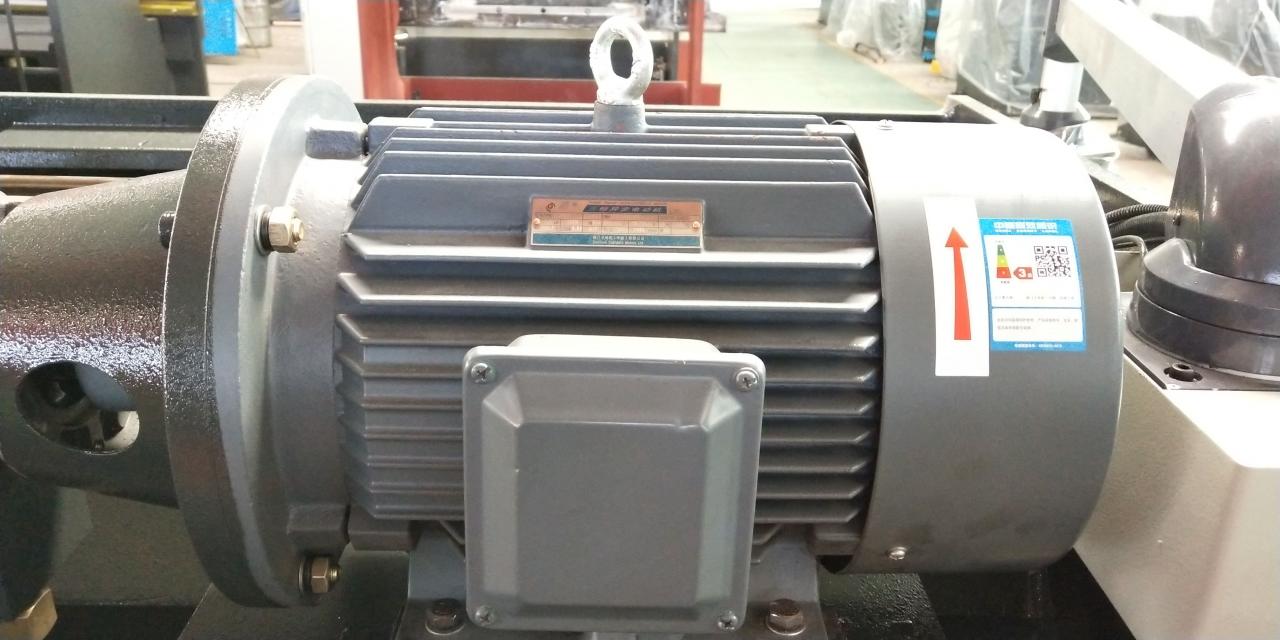

Siemens Motor

Brand: Siemens Germany
Original: Germany
All of RAYMAX Shearing machine Motor original from Siemens Germany.

6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

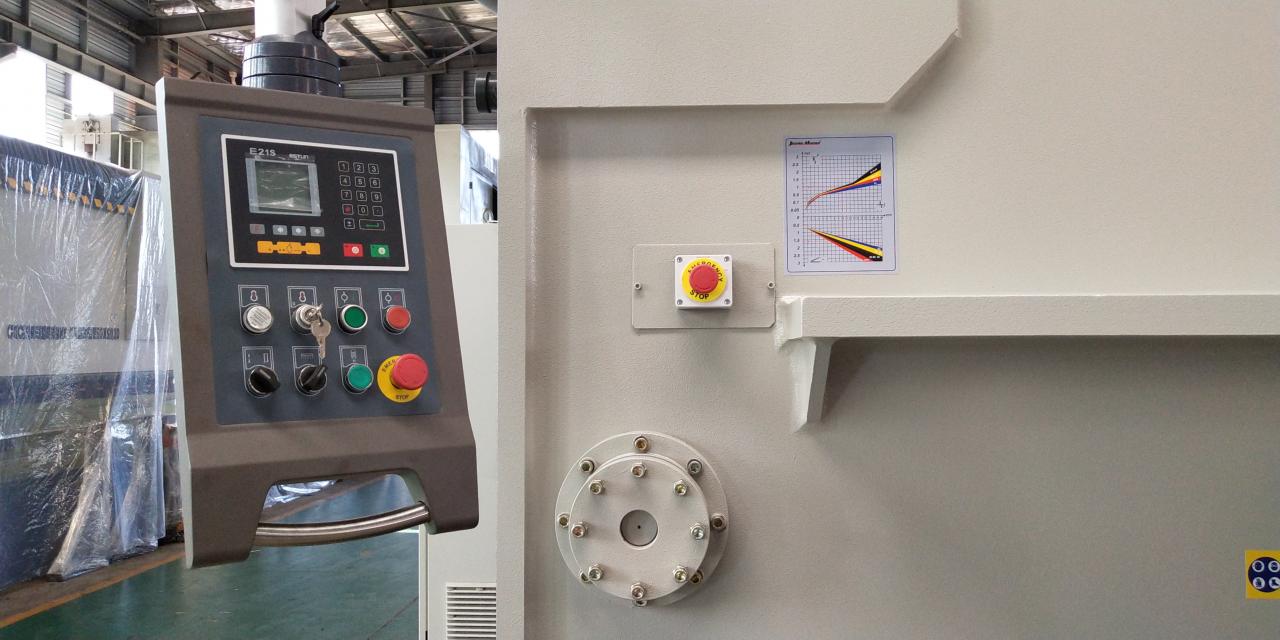

Estun  E21s

Estun E21s control provides a complete and compact shear control application. Including backgauge control, gap control and stroke length limitation this state of the art electronics based unit makes a versatile solution.

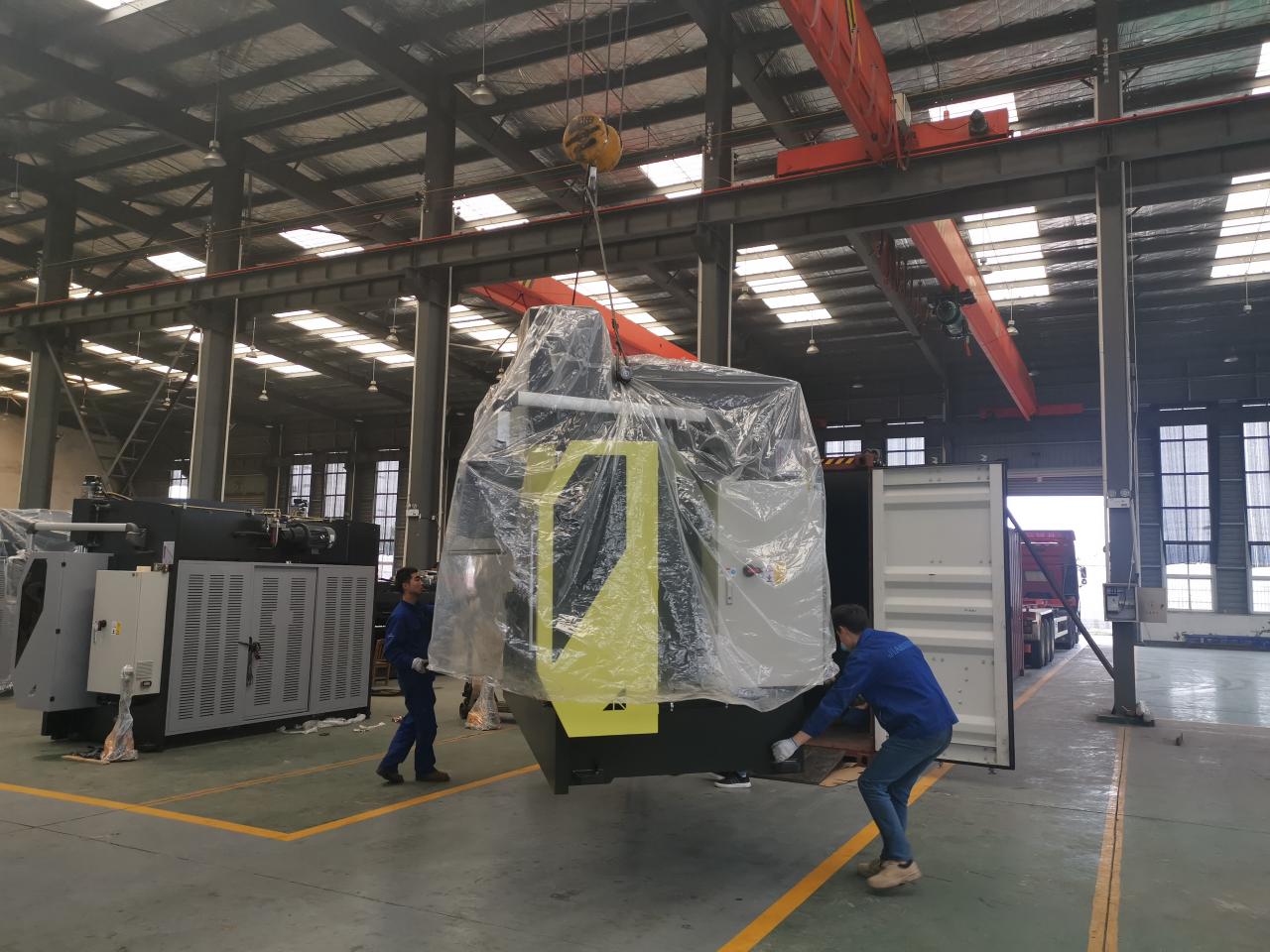

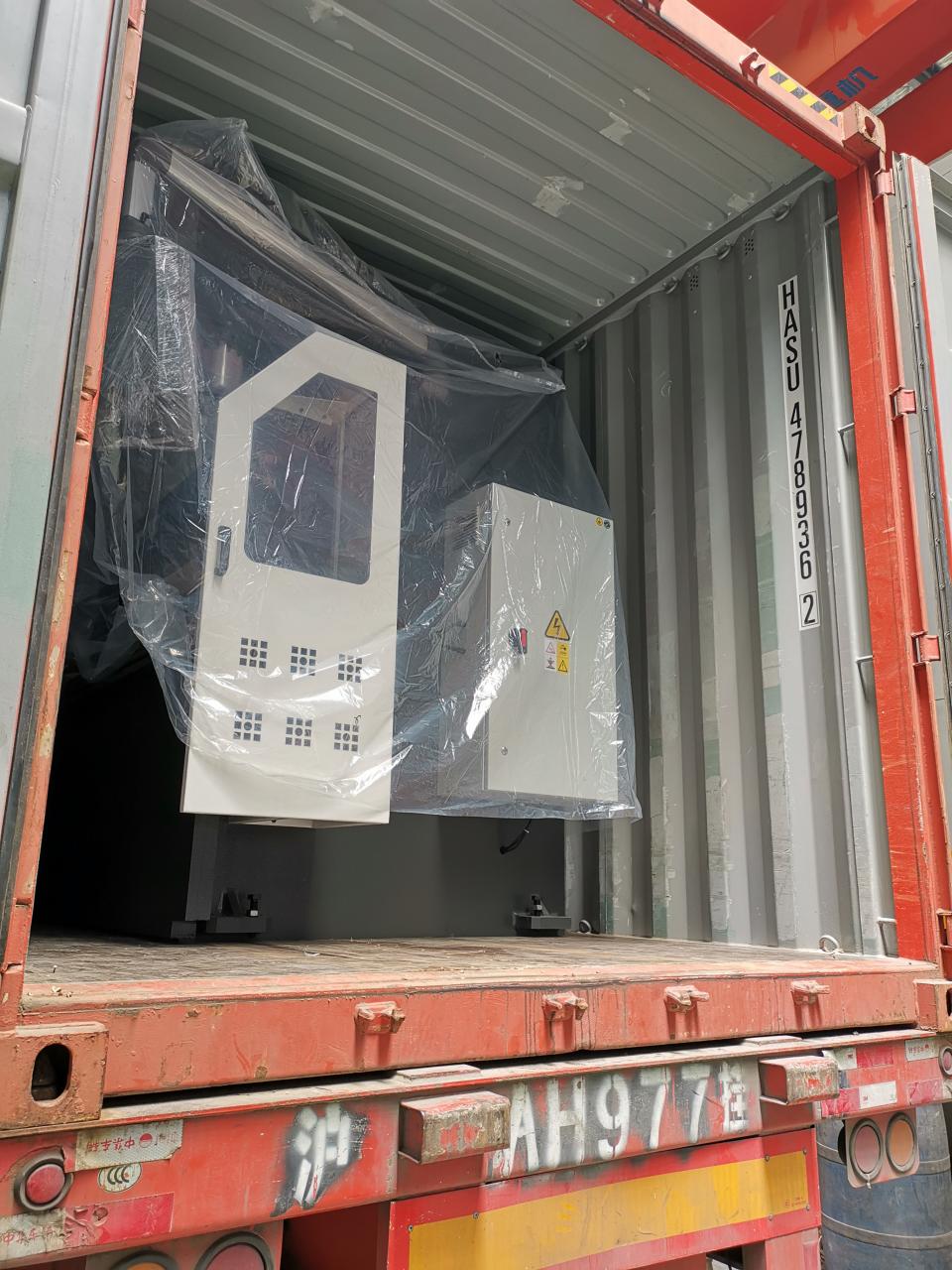

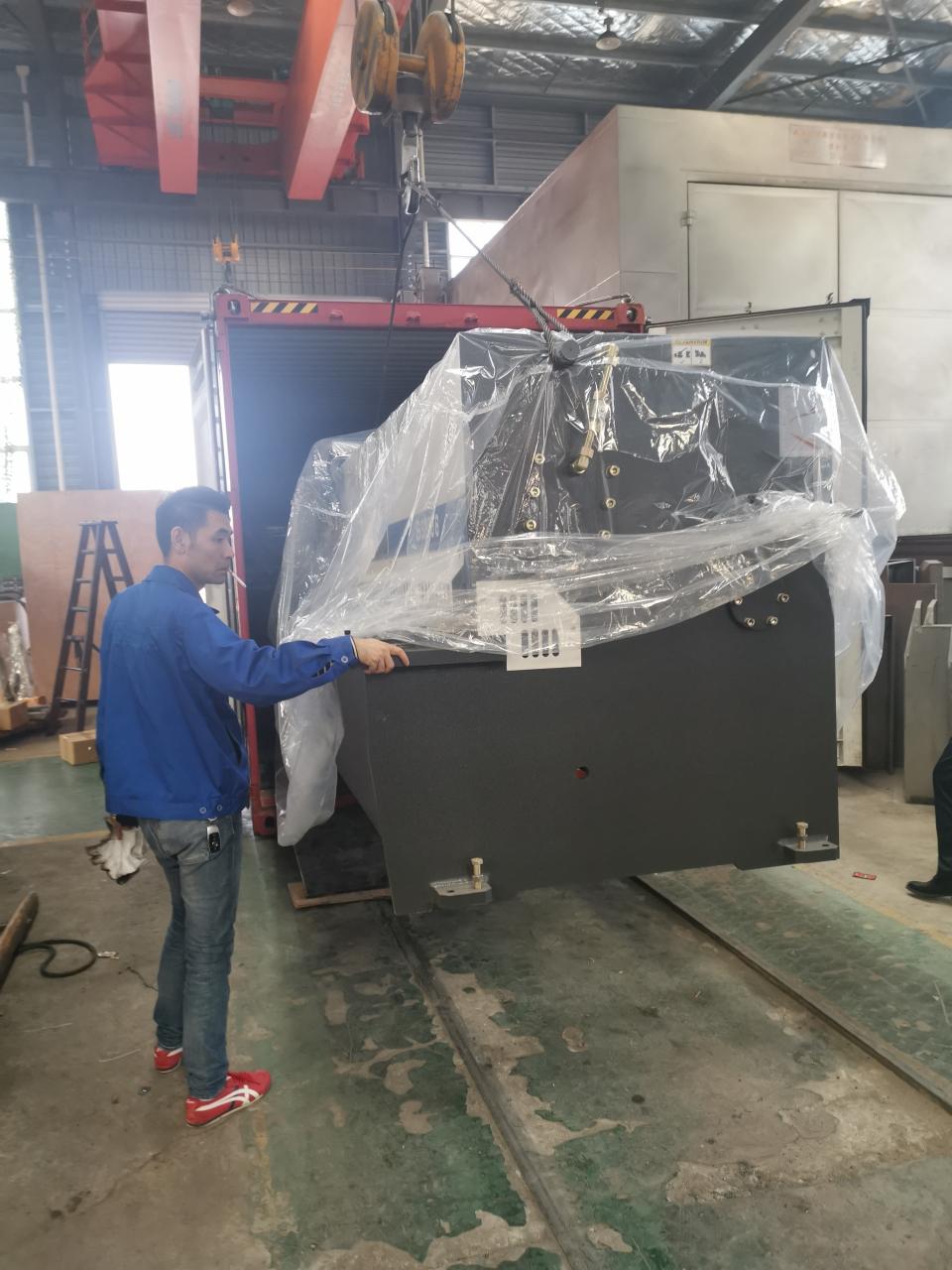

Packing&Shipping

Shipping Fee is depend on package size and weight

Plastic Film or wooden box or custom package

Full container load or less container load 6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine6mm*3200 Hydraulic Steel Plate Cutting Machinery Steel Plate Shearing Machine

After Sales Service

If you buying our machines ,we have the professional engineers to service for you ,they can fly to your factory install and training. Our guarantee time is 2 years from B/L date. Any component damaged during guarantee time, we can send the component toyou by DHL, TNT within 3 days.

FAQ

Q1: Your company's delivery time?

A: Our machines can be sent within 10-50 days.

Q2: How do we get the training for the machines?

A: You can send your people to our factory and we will offer traing free of charge. If you don't have time ,our engineer can fly to your country .

Q3: Your payment?

A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.

Q4: How about the quality?

A: First we choose best material for the processing. Being and after processing, we will inspect the finished parts by professional quality inspector.

Q5: Your after-sales service?

A: 1. Technician available for training and installation at customer’s company
2. 2 Year guarantee. We will sent damage of the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling. ",

Details

  • Max. Cutting Width (mm): 6000
  • Max. Cutting Thickness (mm): 12 mm
  • Automatic Level: Semi-automatic
  • Shearing Angle: 2.14degree
  • Blade Length (mm): 6100 mm
  • Backgauge Travel (mm): 10 - 800 mm
  • Throat Depth (mm): 300 mm
  • Condition: New
  • Power (kW): 40 kW
  • Weight (KG): 45000 KG
  • Place of Origin: Anhui, China
  • Voltage: 220V/360V/customized
  • Year: 2020
  • Warranty: 2 years
  • Key Selling Points: High-accuracy
  • Applicable Industries: Manufacturing Plant, Construction works
  • Showroom Location: India
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Motor, Pump, Gearbox
  • Application: Metal Sheet Cutting
  • Control system: E21S
  • After-sales Service Provided: Field installation, commissioning and training, Online support
  • After Warranty Service: Spare parts
  • Local Service Location: India
  • Certification: CE
