High Quality Plate Bending Cnc Hydraulic Iron Worker Machine Punching Press Machine

Product Description

Double cylinders hydraulic punch & shear machine

Five independent stations for punch, shear, notcher, section cut

Large punch table with multi-purpose bolster

Removable table block for overhang channel / joist flange punching applications

Universal die bolster, easy change punch holder fitted, punch adapters supplied

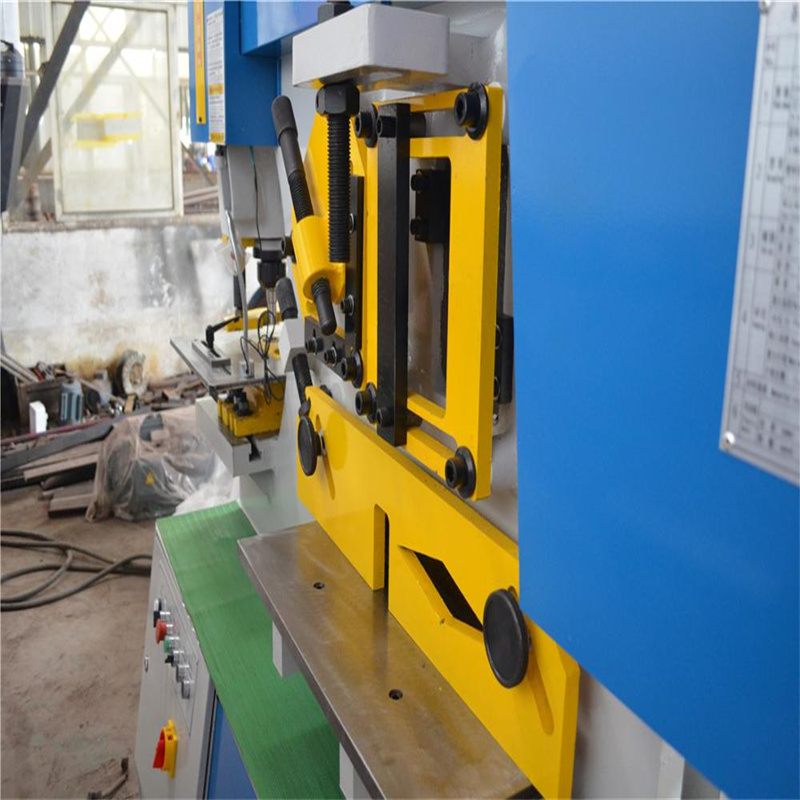

Angle, round & square solid monoblock crop station

Rear notching station, Low power inching and adjustable stroke at punch station

Centralised pressure lubrication system

Electric panel with overload protaction elements and ingetrated controls

Safety movable foot pedal

Parameters

Model			Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Processing Capacity (KN)			900	1200	1600	2000	2500
Material Tensile Strength (Mpa)			≤450	≤450	≤450	≤450	≤450
Flat Shearing	Max. Shearing Capacity		20×330	25×330	30×355	35×400	40×450
	(thickness* width) (mm)		10×480	16×600	20×600	25×700	30×750
Bar Shearing	Square Bar(mm)		45	50	55	60	65
	Round Bar (mm)		50	60	65	70	80
	C-channel (mm)		160	200	280	300	320
	I-beam (mm)		160	200	280	300	320
Angle shearing	90° shearing (mm)		140×12	160×14	180×16	200X18	200×20
	45° shearing (mm)		70x10	80x7	80x10	80x10	80x10
Hole Punching	Max. Punching Capacity (diameter* thickness) (mm)		Φ30*20	Φ35*25	Φ38*26	Φ40*35	Φ40*40
Motor (KW)			5.5	7.5	11	15	18.5
Dimension(mm)		Length	1950	2350	2680	2800	3200
		Width	900	980	1060	1260	1440
		Height	1930	2100	2380	2420	2450
Weight			2600	4400	6600	7500	10800

Our Mission, Your Solution

1. Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time, we can deliver the component to the customer by courier without any extra charge .

2. Our factory provide oversea engineer service training freely. The customer provide the double trip tickets, engineer salary ,
and accommodation for our engineer. The customer also can send the engineer to our factory for learning .

3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by wechat, Skype, Email , whatsapp and Telephone at any time, we provide 24 hours on-line service.

Details

• CNC or Not: Normal
• Condition: New
• Nominal Force (kN): 60
• Power Source: Hydraulic
• Year: 2020
• Voltage: 380V or customized
• Dimension(L*W*H): 1640*730*1770
• Motor Power (kW): 4KW
• Weight (T): 1.6
• Key Selling Points: mult-function
• Warranty: 5 years
• Showroom Location: India, Argentina, Australia, Viet Nam, Japan, South Africa
• Applicable Industries: Manufacturing Plant, Construction works , Advertising Company, Machinery Repair Shops, Building Material Shops
• Model: Q35y-16 Ironworker
• Max cutting thickness: 16 mm
• Plate Strength: 450 N//mm2
• Cutting angle: 7 °
• Shearing size of one stroke: 16x250mm /8x400
• Ram stroke: 80 mm
• Number of strokes: 8 times /min
• Throat depth: 300 mm
• Punching thickness: 16mm
• Max punching diameter: 25 mm
• After-sales Service Provided: Free spare parts, Online support, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
• After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts, Online support
• Local Service Location: Philippines, Indonesia
• Certification: CE, ISO
