Wc67y Hydraulic Plate Metal Bending Machine Press Brake Machine Price

Product Application

Totally European design, streamlined looking

Taking off inner-stress of welded parts by tempering, good stability

Romove rust with sand-blast and coated with anti-rust paint

Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will guarantee dimension precision and position precision.

The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time. WE67K Hydraulic metal plate press brake , steel sheet bending machine , SS plate press brake Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.

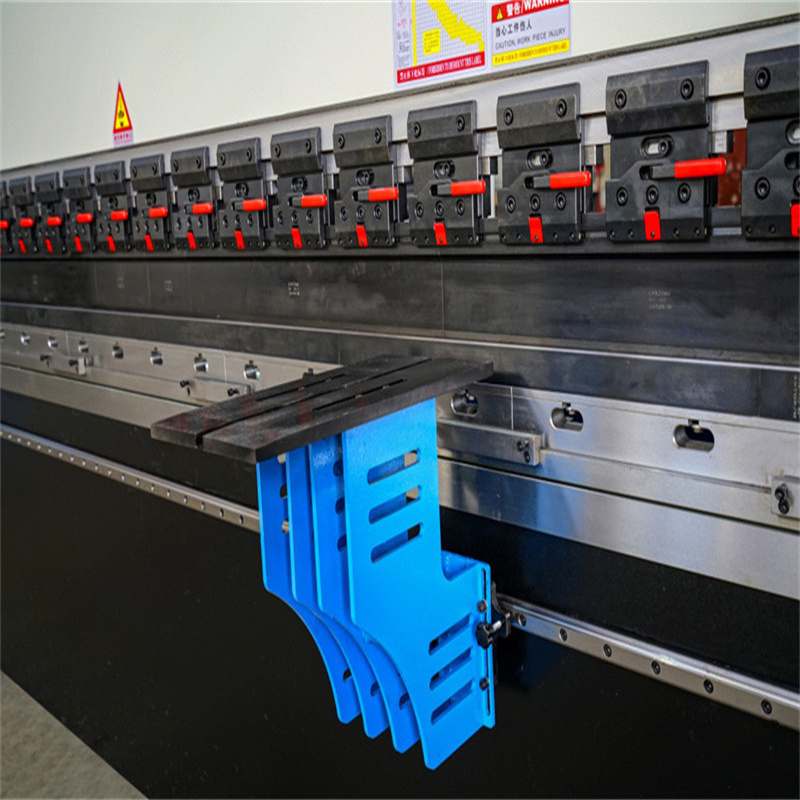

Supplying three front sheet supports , Finish of Nippon Polyurethane paint.

Main Features

1. Hydraulic system:

1) Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.

2) Oil seals by Japanese, NOK.

3) Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.

2. Servo motorized backgauge:

1) CNC backgauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.

2) Backgauge has well enough mechanical strength and rigidity with tank-type gauge structure.

3) High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of backgauge.

3. Electrical parts and protection device:

1) Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.

2) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate. WE67K Hydraulic metal plate press brake , steel sheet bending machine , SS plate press brake

3) Light screen protection.

4. Delem DA52S CNC press brake control system:

1) 6.4" VGA colour LCD (TFT)

2) Numerical, one page programming

3) Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

4) CNC crowning control

5) USB, peripheral interfacing

6) Servo, frequency inverter and AC control for backgauge axes.

FAQ

Q1. Trade company or manufacturer?
A: We manufacturer

Q2. Is it easy to operate for the new user ?
A: Very easy

Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.

Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours

Details

• Slider Stroke (mm): 80 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 200 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2000
• Width of Working Table (mm): 1280 mm
• Dimension: 1700*900*1650
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Carbon steel
• Automation: Automatic
• Extra Services: End Forming
• Weight (KG): 3
• Motor Power (kw): 7.5 kw
• Key Selling Points: High Productivity
• Warranty: 5 years
• Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Farms, Home Use
• Showroom Location: UAE
• Marketing Type: Ordinary Product
• Machinery Test Report: Not Available
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Motor, Pump, Gear
• Product name: press brake machine
• Raw Material: Sheet / Plate Rolling
• Type: Hydraulic Bending Tools
• Material: Q235
• Weight: 3000KGS
• Color: can be customized
• After-sales Service Provided: Engineers available to service machinery overseas, Video technical support
• Lead time: 15-20days
• Warranty time: 2 years
• Nominal Pressure (kN): 300
• Certification: ce
• After Warranty Service: Video technical support
